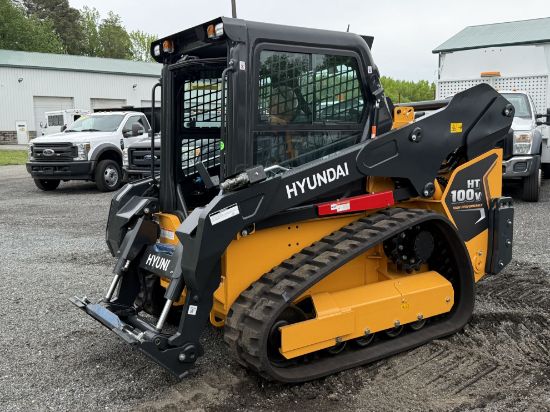

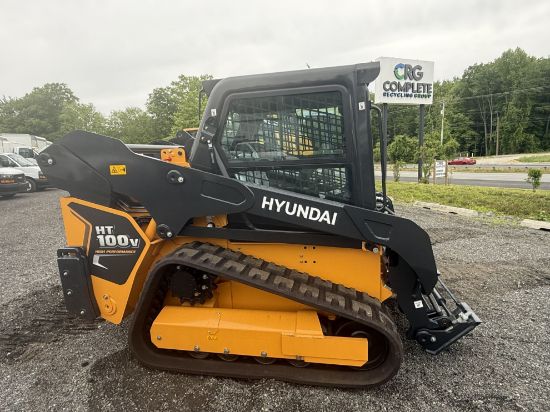

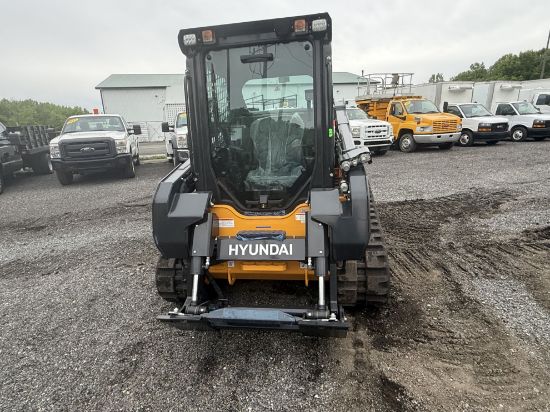

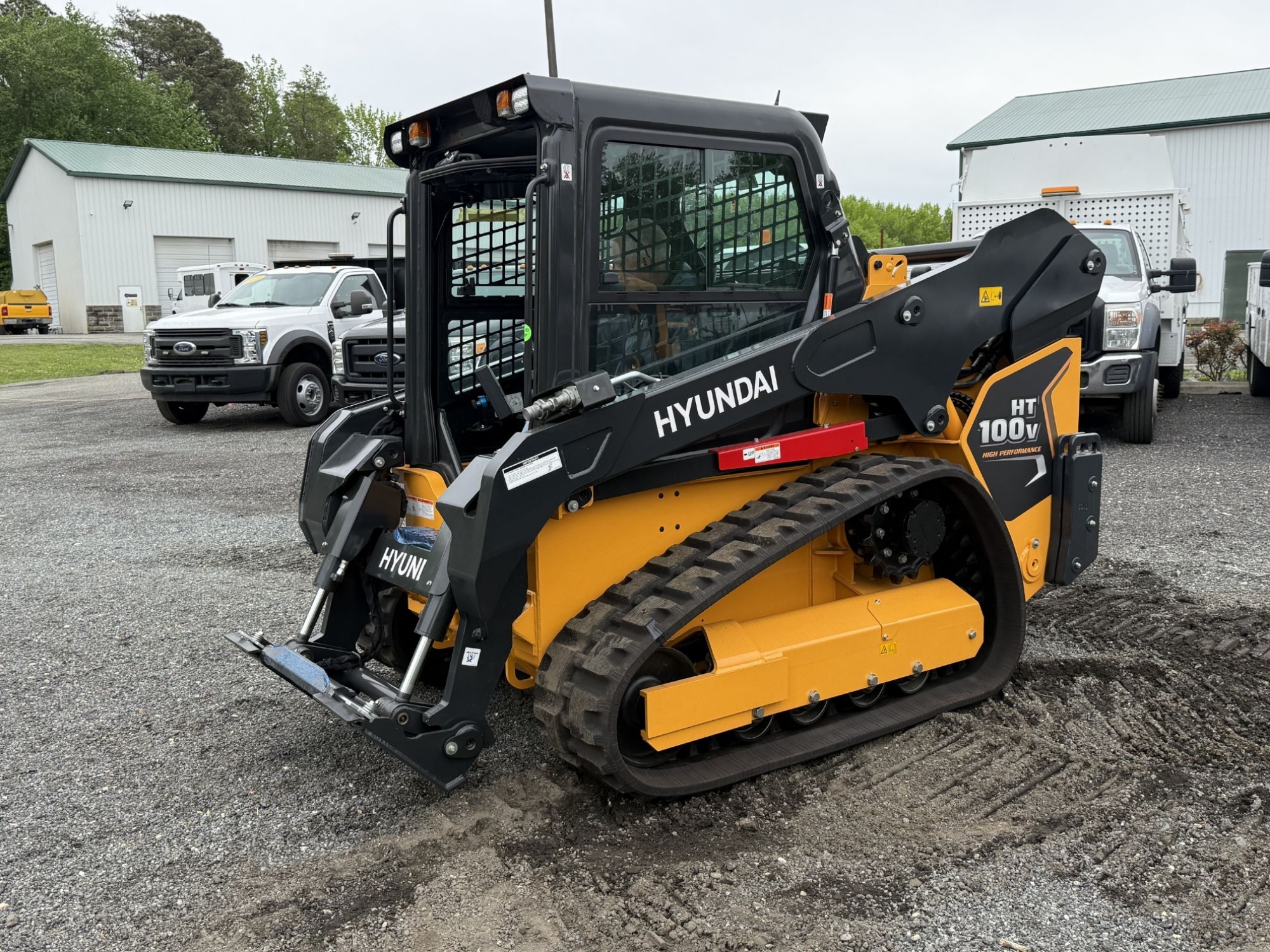

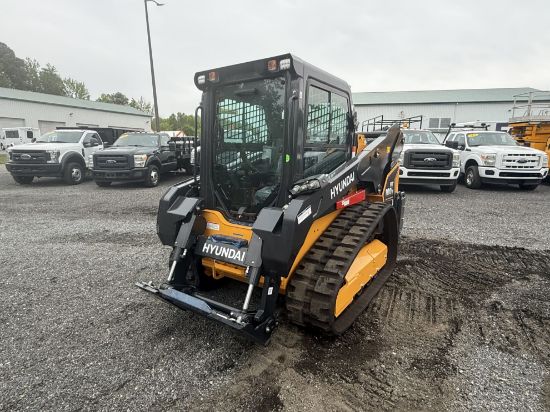

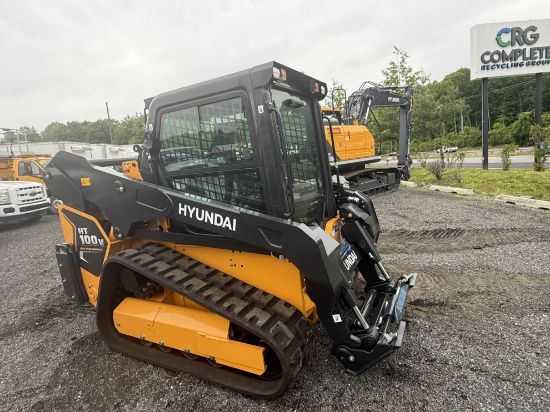

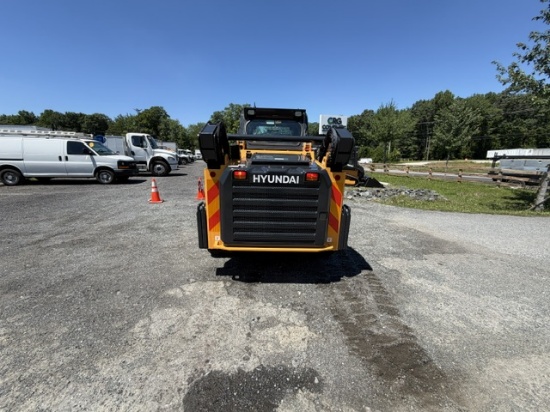

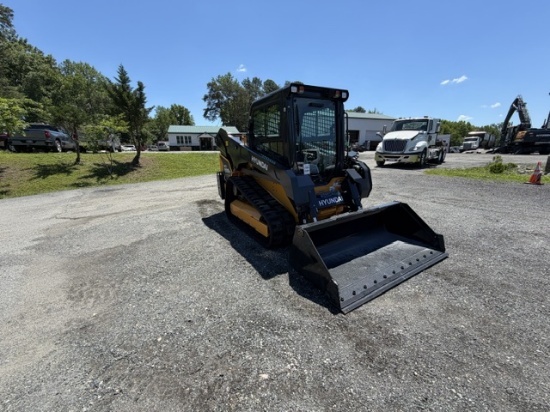

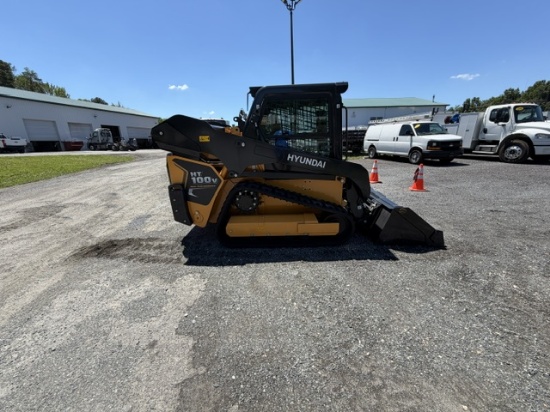

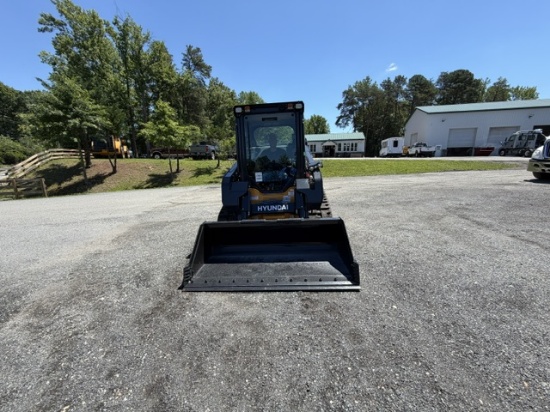

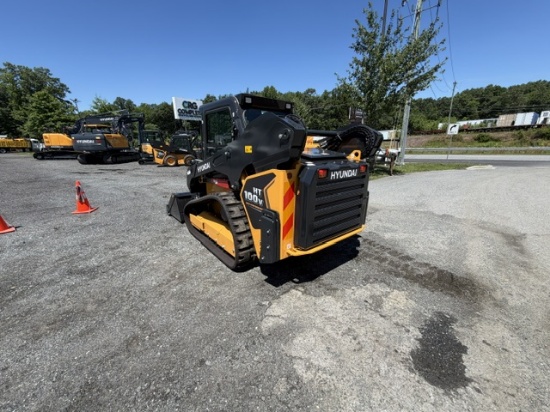

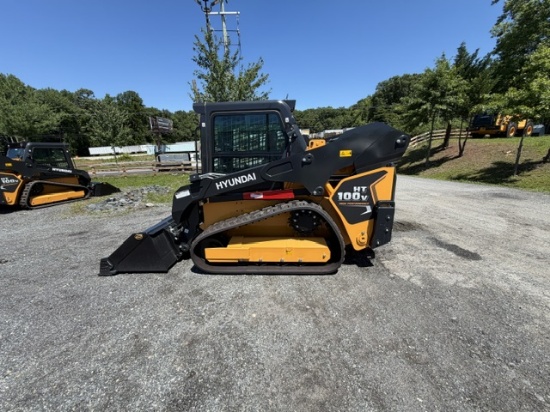

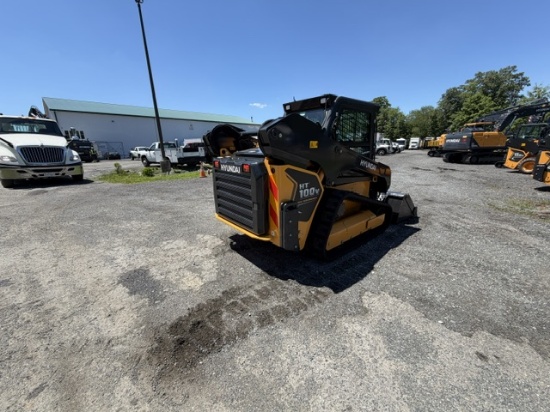

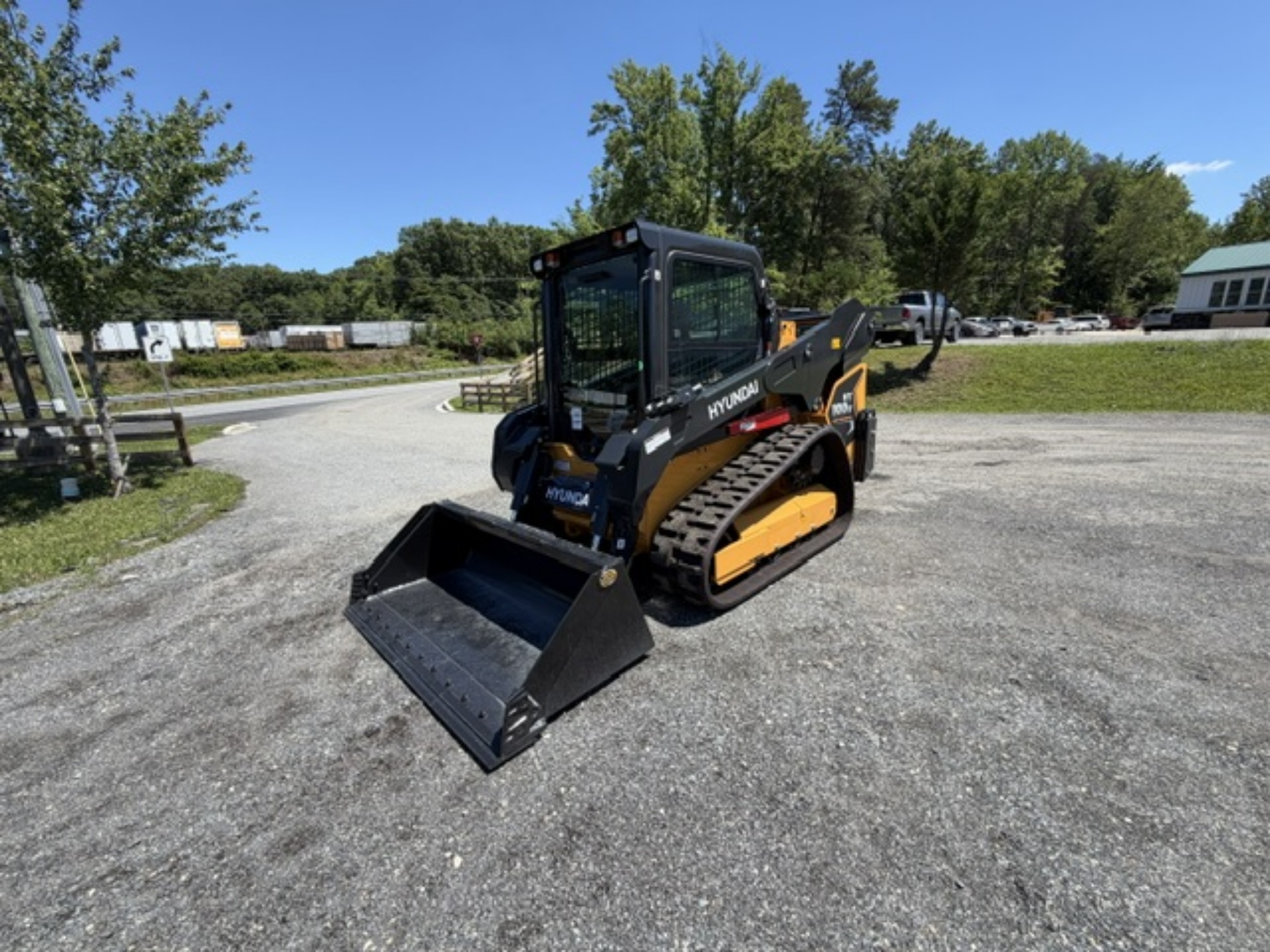

2026 Hyundai HT100V

Name: 2026 Hyundai HT100V
SKU: HE-00005
Price: 70900.00 USD
Availability: InStock

2026 Hyundai HT100V | Stock #HE-00005 | Serial: DD2HC301VC0000486

$70,900.00

Qty:

Products specifications

Attribute name	Attribute value
Condition	New
Make	Hyundai
Model	HT100V
Hours	0
Fuel Type	Diesel
Make/Model	Hyundai / 4HTI4
Emissions Certification	EPA Tier 4-Final

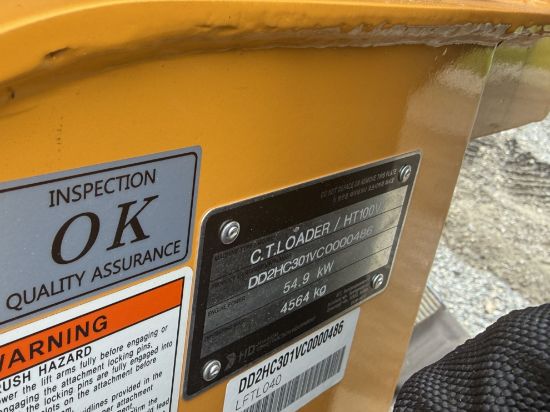

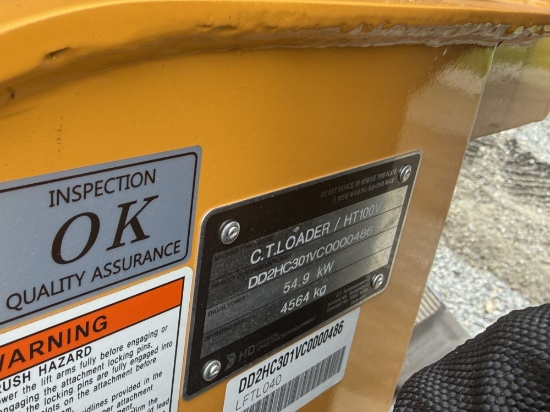

Serial Number	DD2HC301VC0000486
SAE J1349 Net 69.7 hp (52 kW) / 2,400 rpm — Displacement	148.6 cu in (2,435 cc)
Number of Cylinders	4 cylinders
Bore x Stroke	3.4” (87 mm) x 4.0” (102.4 mm)
Aspiration	Turbocharged
After treatment	DOC, DPF (No DEF)
~50% tipping load — Bucket	6,204 lbf (2,814 kgf)
Breakout Force — Lift Arm	4,766 lbf (2,162 kgf)
Lift Arm Path	Vertical

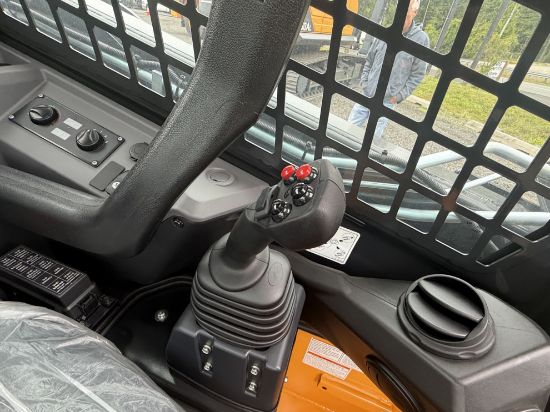

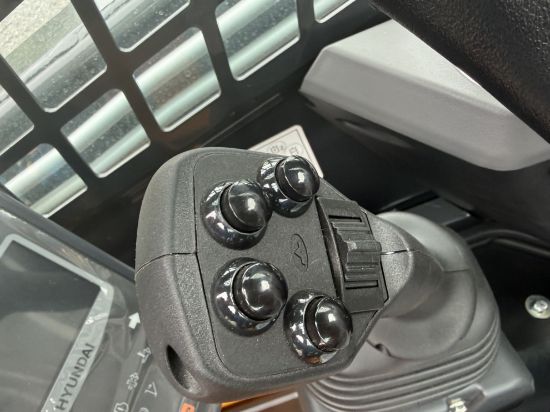

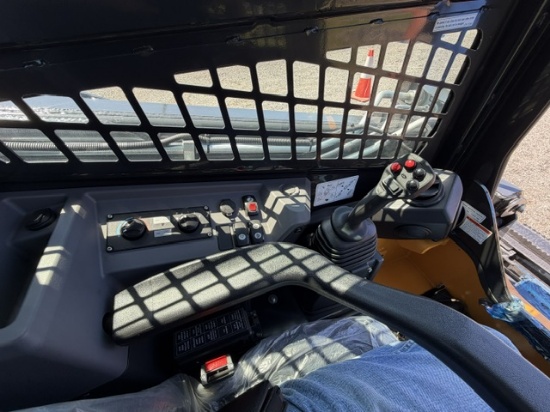

Control	ISO Pilot
Track Width	1’ 4” (400 mm)
Ground Pressure	5.6 psi (38.5 kPa)
Track Rollers (Per Side)	4
Travel Speed (1-Speed)	N/A
High 7.1 mph (11.5 km/h) — Traction Force	6,482 lbf (2,940 kgf)
Ground Clearance	9" (230 mm)
Hydraulic Flow	21.9 gpm (82.9 lpm)
Hydraulic Pressure	3,335 psi (230 bar)
Hydraulic System	10.0 gal (38 liters)
Engine oil	2.4 gal (9 liters)

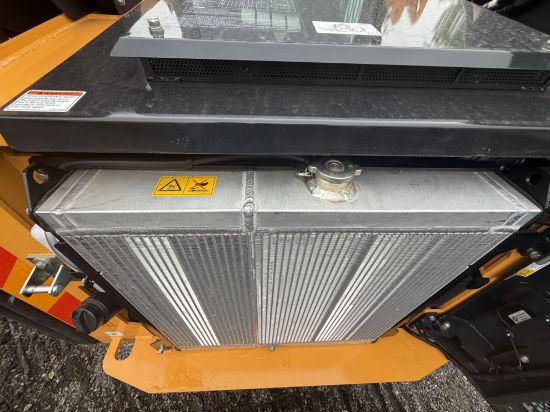

Engine coolant (Radiator Included) 2.7 gal (10.4 liters) — Fuel tank	26.4 gal (100 liters)

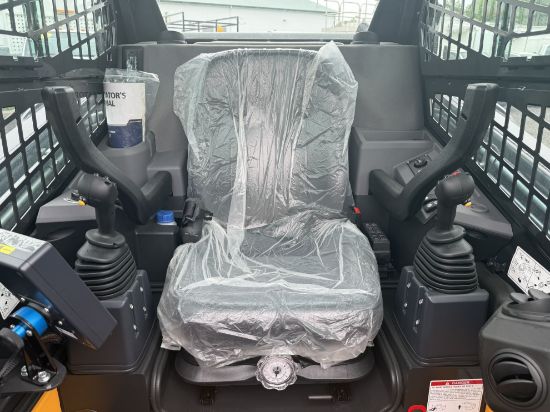

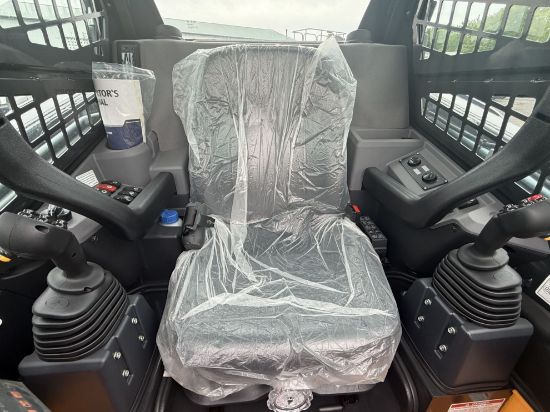

Type	Open and Closed Cab
Sound Inside Closed Cab	83 dB

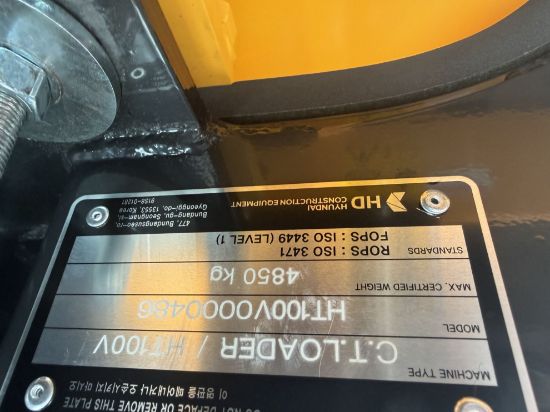

ROPS	ISO 3471
FOPS	ISO 3449
Open Cab	Coming Soon
Closed Cab	9,755 lbs (4,425 kg)
2” Retractable Seat Belt*	• Polycarbonate Front Door*
Side Mirrors	• Fire Extinguisher
License Lamp	• Tool Kit
Beacon Lamp	... and much more.
Driving Lamp (Front 2/Rear 2)	* Factory Option
A — Length w/bucket on ground	3,654 (12’ 0”)
B — Length w/o bucket	2,795 (9’ 2”)
C — Vehicle width over tire	1,794 (5’ 11”)
D — Width with bucket	1,890 (6’ 3”)
E — Height to top of cab	2,078 (6’10”)
F — Track tread	1,394 (4’ 7”)
G — Wheelbase	1,435 (4’ 8”)
H — Ground clearance	230 (0’ 9”)
I — Reach at max. lift and dump	916 (3’ 0”)
J — Height at max. lift and dump	2,468 (8’ 1”)
K — Hinge pin height at max. lift	3,211 (10’ 6”)
L — Max. dump angle	44.5º
M — Rollback angle on ground	29º
N — Turning radius from center - coupler	1,672 (5’ 6”)
O — Turning radius from center - bucket	2,289 (7’ 6”)
P — Turning radius from center - machine rear	1,720 (5’ 8”)
Q — Rear departure angle	25º
R — Max. overall height	4,060 (13’ 4”)
S — Rack back angle at max height	87.2º
T — Bucket pin reach at maximum lift	442 (1’ 5”)

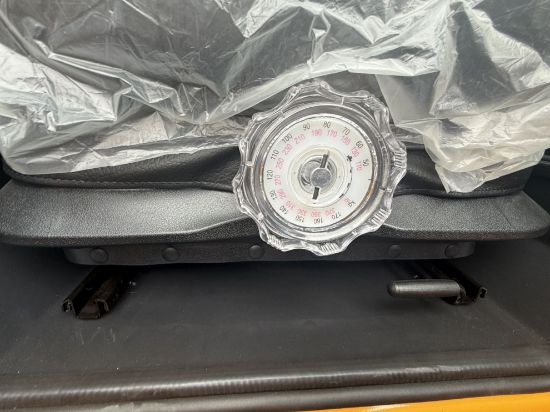

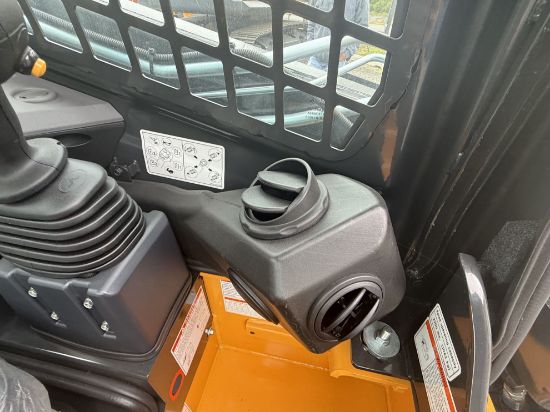

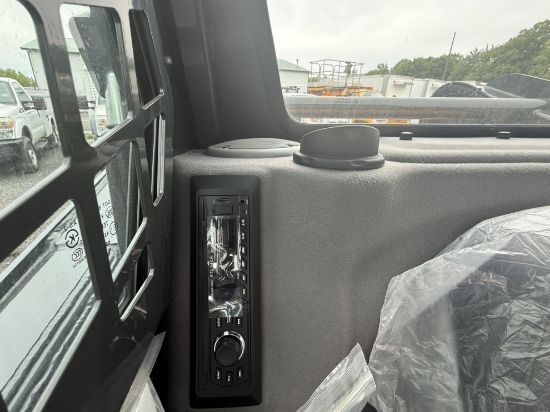

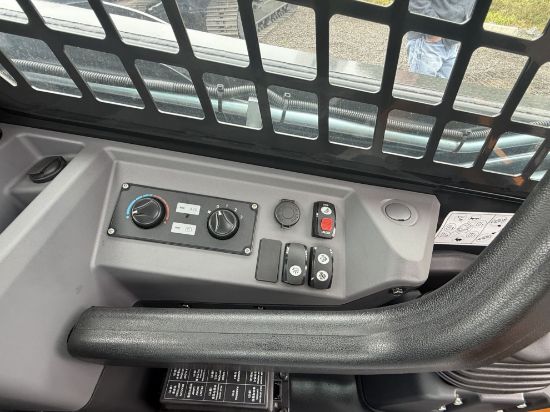

A/C with Heater, Suspension Seat, Radio	Yes

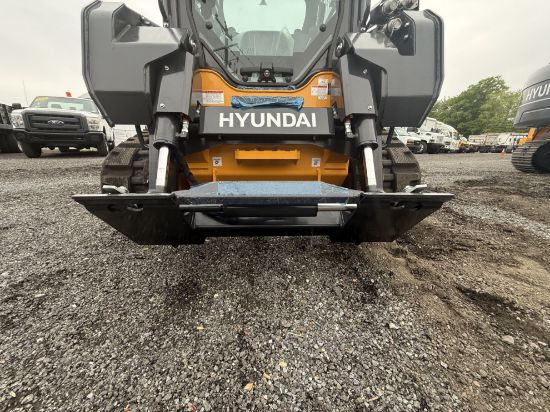

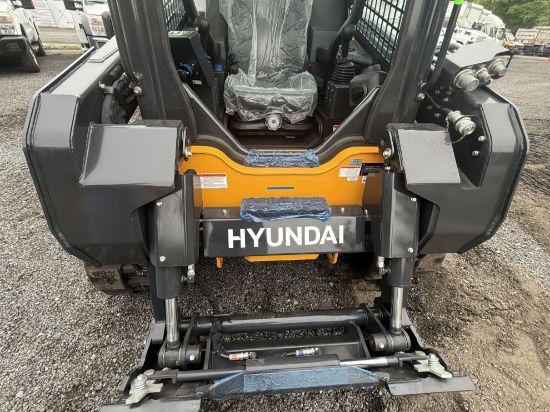

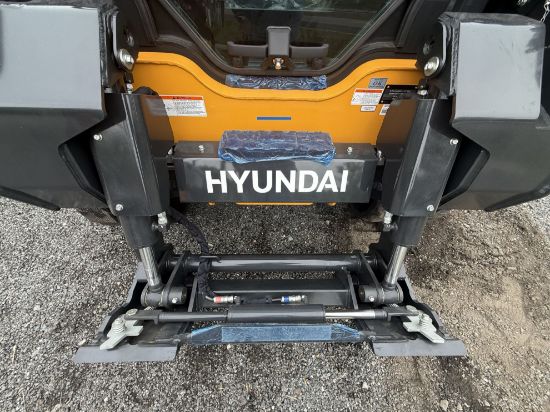

Hydraulic Quick Coupler	Yes

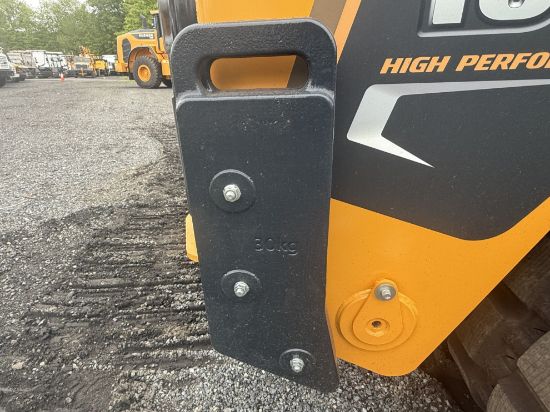

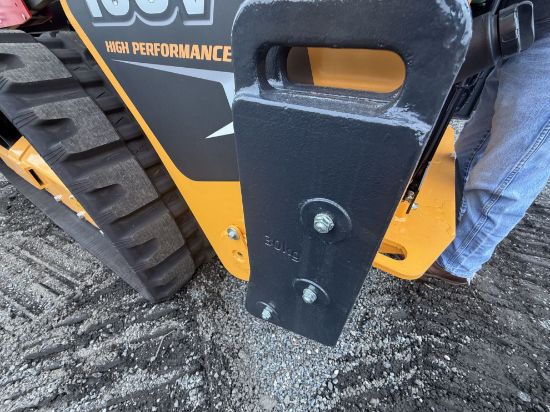

Additional Counterweight	Yes
Universal Key System	Yes

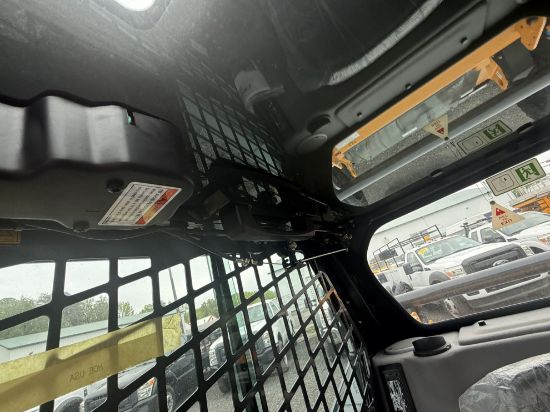

LED Cabin Light	Yes
Rear View Camera	Yes
Telematics Hi-MATE (5yr)	Yes

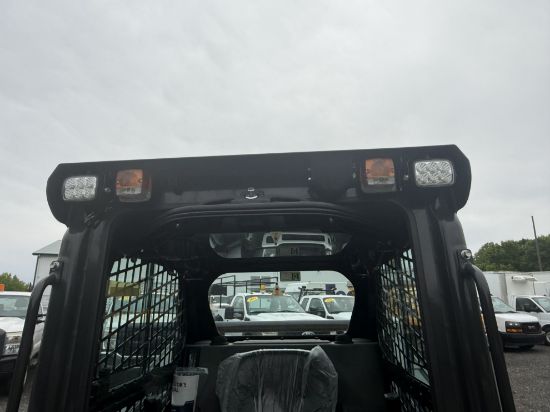

Driving Lamp (Front & Rear)	Yes
Without Side Mirror	Yes
Hydraulic Oil VG46	Yes
Without Bucket	Yes
Standard Flow(22 gpm / 83 lpm)	Yes
Tempered Front Glass	Yes
Bucket Self Leveling	Yes

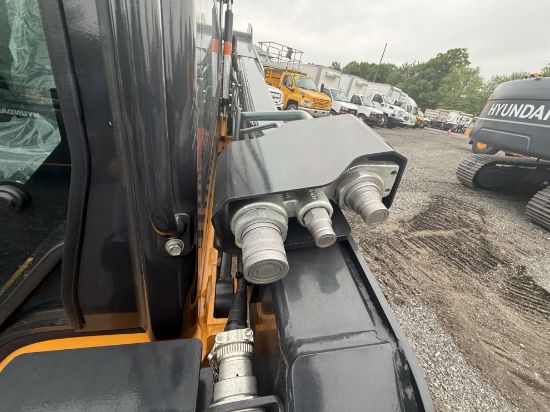

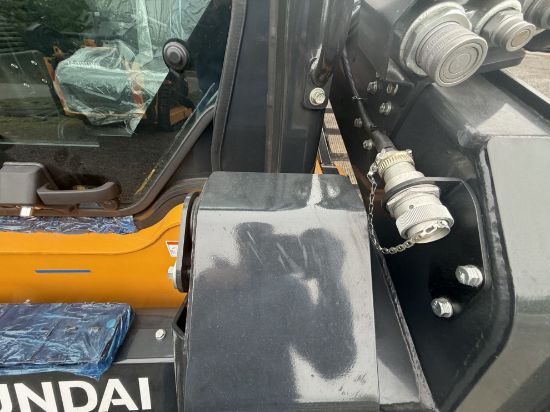

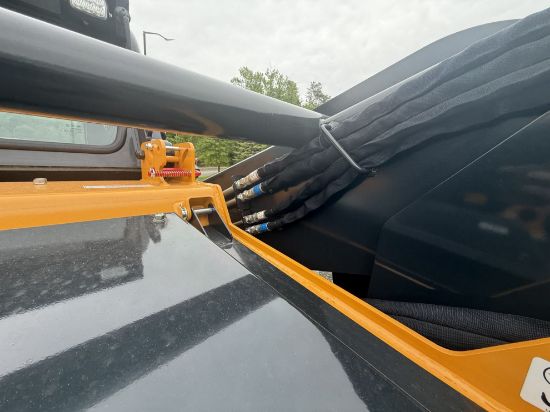

Aux Hydraulic 14-pin	Yes
Ride Control System	Yes
